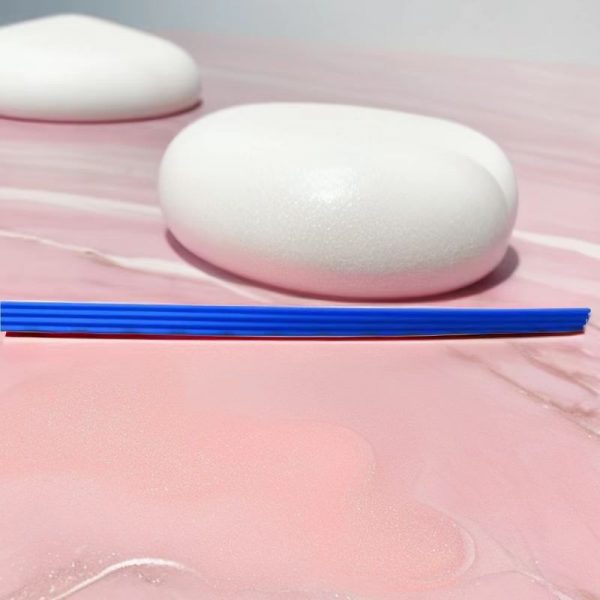

CCV2-500-4 Parallel Four Fiber Cores Polymer Optical Fiber-POF Cable

Parallel Four Fiber Cores Polymer Optical Fiber-POF Cable,Blue PVC sheath,0.5/1.0/4.0mm, 0.18dB/M@650nm,1500meters spool

Our CCV2-500-4 Parallel Four Fiber Cores Polymer Optical Fiber-POF Cable refers to the PMMA Polymer Optical Fiber Cable with four(4) pcs of 0.5mm fiber cores in parallel, jacketing with blue PVC sheath to protect the PMMA Fiber Core from harsh environment. The CCZ2-500-4 POF cable is an cost-effective alterantive replacement for some well-known brands such as Broadcom Avagao, Asahi, HITRONIC,Mitsubishi ESKA POF Cables for short distance transmission within 100meters.

POF Cable benefits:

• 55% lower cost than well-known brands
• 50% less power to operate than copper
• 80% reduction of carbon dioxide than copper
• Universally compatible with the Broadcom Avago Versatile Link family of connectors and fiber optic components as transmitters and receivers
• 0.5mm POF available in 1 grade with 0.18 dB/m typical attenuation (-40°C to +70°C) @650nm
• Waterproof, moisture-proof, EMI free

POF Cable Basic Properties:

• Configuration: Four cores
• Core Diameter: 0.50 mm
• Core Material: PMMA (Polymethyl Methacrylate)
• Jacket Diameter: 4.0mm±0.1mm
• Jacket Material: PVC – Blue
• Numerical Aperture: 0.5
• Attenuation: 0.19 dB/m at 650 nm
• Operating Temperature Range: -40°C to 70°C
• RoHS Compliant

POF Cable Application:

• Industrial Data Links for Factory Automation and Plant Control
• Intra-system Links; Board-to-board, Rack-to-rack
• Telecommunications Switching Systems
• Computer-to-peripheral Data Links, PC Bus Extension
• Proprietary LANs
• Digitalized Video
• Medical Instruments
• Reduction of Lighting and Voltage transient Susceptibility
• High Voltage Isolation

Ordering Information:
