LCV-750 Multi-core Plastic Optical Fiber-POF Cable
- Multi-core 0.75mm PMMA Fiber Core
- RoHS compliant
- Compatible with Broadcom Versatile Link family of connectors and fiber optic components
- Extra low loss POF with 0.18 dB/m typical attenuation
LCV-750 Multi-core Plastic Optical Fiber-POF Cable,Black PVC sheath,0.75mm low attenuation fiber, 0.23dB/M@650nm

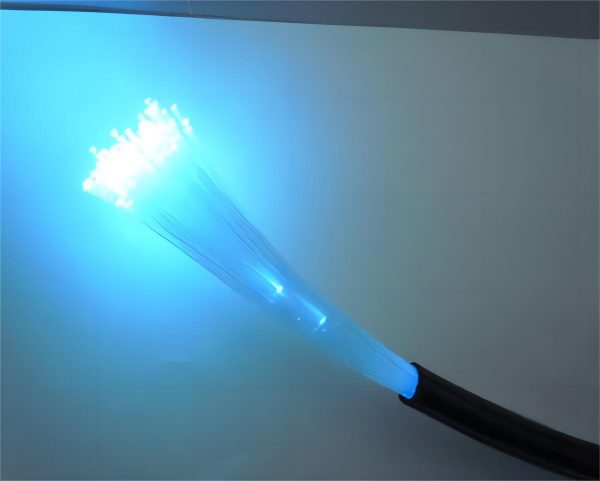

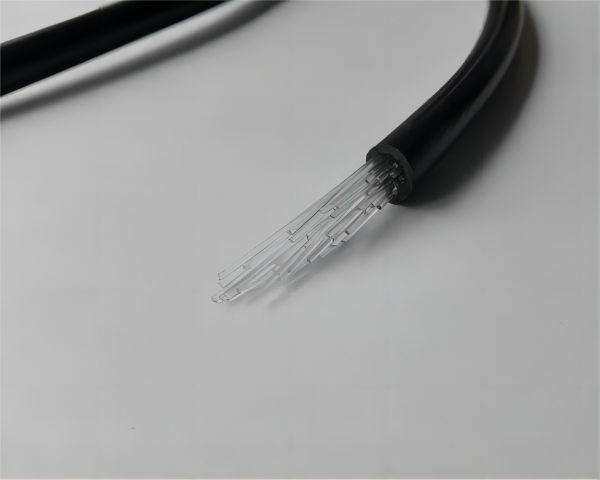

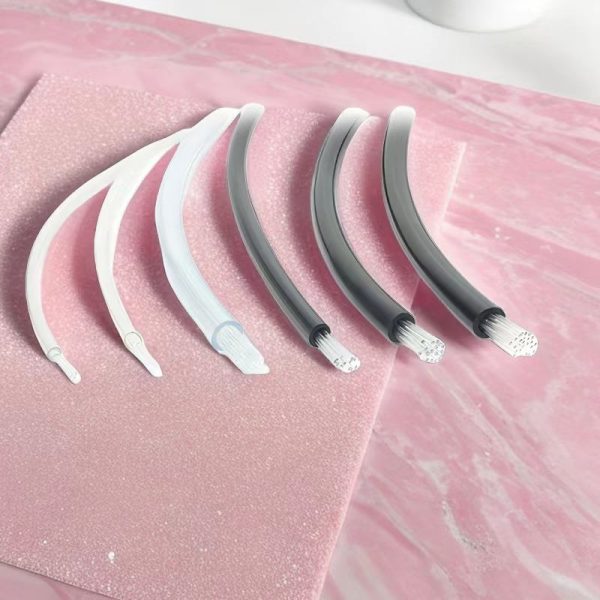

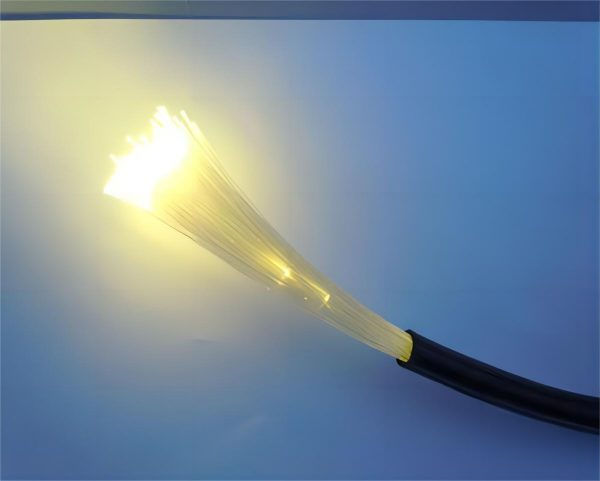

Our LCV-750 series multi-cores Plastic Optical Fiber-POF Cables are contructed with multile counts of low attenuation 0.75mm PMMA fiber cores, with transparent or black PVC jacket as the protection jacket sheath. The 0.75mm polymer optical fiber counts can be ranging from 3~125 pcs, diameter ranging from 3.0 ~14.0mm. These multi-core POF cables are typically used for sensing, specialty lighting, and data transmission.
POF Cable Basic Properties:
- Configuration: Simple
- Core Diameter: 2~125 x 0.75mm
- Core Material: MMA (Methyl Methacrylate)
- Jacket Diameter: 2~13.0mm
- Jacket Material: PVC (Polyvinyl Chloride) – Black
- Numerical Aperture: 0.5
- Attenuation: 0.23 dB/m at 650 nm
- Operating Temperature Range: -55°C to 70°C
- Maximum functional length: 100~450 meters
- RoHS Compliant
POF Cable Application:
- Lighting
- Liquid Level Sensing
- Photoelectric Sensing
- Pressure Sensing
- Temperature Sensing
- Solar Energy
Ordering Information:
| Part Number | Fiber Counts | Fiber Core / Cable Diameter
(mm) |
Spool Length
(M/Roll) |
Jacket Material |
| LCV-750-4 | 4 | 0.75/3.0±1 | 450 | Black PVC |
| LCV-750-7 | 7 | 0.75/4.0±1 | 450 | |
| LCV-750-14 | 14 | 0.75/5.0±1 | 300 | |
| LCV-750-25 | 25 | 0.75/6.0±1 | 100 | |
| LCV-750-42 | 42 | 0.75/8.0±1 | 100 | |

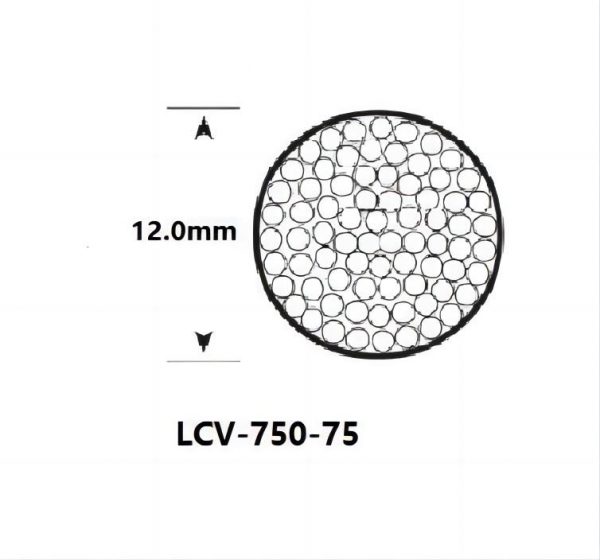

| LCV-750-75 | 75 | 0.75/12.0±2 | 100 | |
| LCV-750-126 | 126 | 0.75/14.0±2 | 100 | |
| LCV2-750-4 | 4 | 0.75/3.0±1 | 450 | |
| LCV2-750-7 | 7 | 0.75/4.0±1 | 450 | |
| LCV2-750-14 | 14 | 0.75/5.0±1 | 300 | |
| LCV2-750-25 | 25 | 0.75/6.0±1 | 100 | |
| LCV2-750-42 | 42 | 0.75/8.0±1 | 100 | |
| LCV2-750-75 | 75 | 0.75/12.0±2 | 100 | |
| LCV2-750-126 | 126 | 0.75/14.0±2 | 100 |
Remark:
-LCV Series are contructed with PMMA fiber @ 0.23dB/M attenuation;
-LCV2 Series are contructed with PMMA fiber @ 0.18dB/M attenuation;
