HFBR 4511Z Broadcom/Avago Simplex POF Cable Connector
- Fully Compatible with All Versatile Link Connectors, Transceivers & Components
- Use with 1.0/2.2 mm diameter Plastic Optical Fiber (POF)
- Crimp Ring Included for Retention onto Fiber Jacket
- Material: Flame-Retardant VALOX
- UL 94 V-0 Compliant, File E121562
- RoHS Compliant

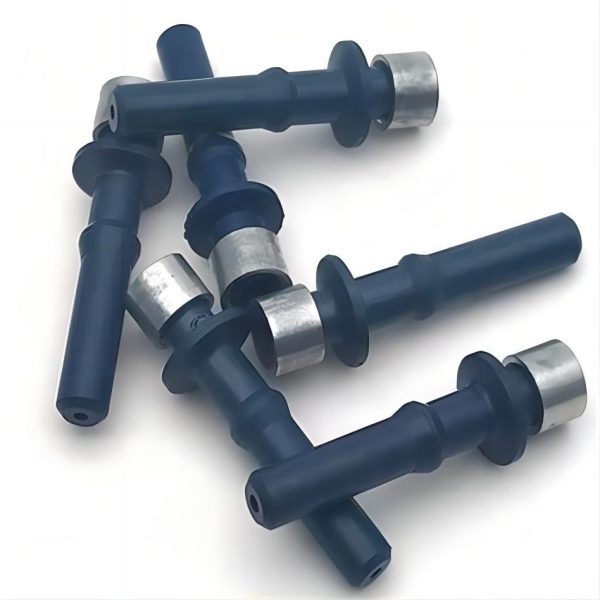

HFBR-4511Z-Blue
Broadcom/Avago Plastic Optical Fiber-POF Cable Connector – Blue Simplex/Crimp Ring, RoHS Compliant
Four connector styles are available for termination of plastic optical fiber: simplex, simplex latching, duplex and duplex latching. All connectors provide a snap-in action when mated to Versatile Link components. Simplex connectors are color coded to facilitate identification of transmitter and receiver connections. Duplex connectors are keyed so that proper orientation is ensured during insertion. If the POF cable/connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive (see Plastic Connectoring Instructions for more detail). The connectors are made of a flame retardant VALOX UL94 V-0 material (UL file # E121562).

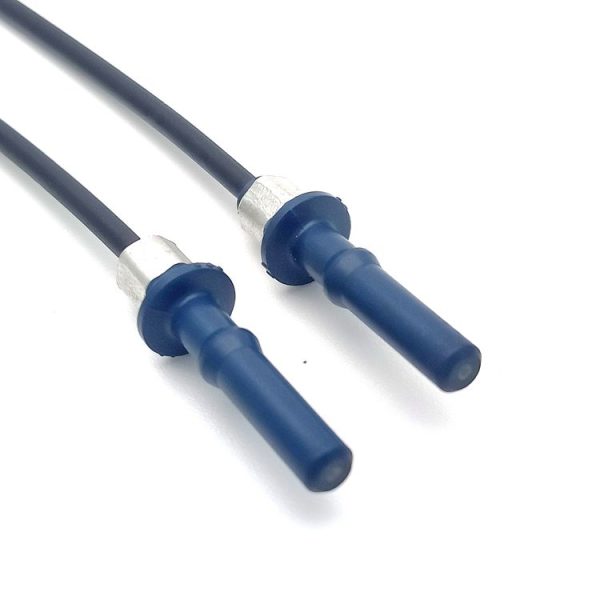

Broadcom (formerly AVAGO) Versatile Link HFBR-4511Z Blue Simplex Friction-Style Connector. For use with 1.0 x 2.2mm POF.
Technical Specifications:
| Product Attribute | Attribute Value |
| Manufacturer: | Broadcom Limited |
| Product Category: | Fiber Optic Connectors |
| RoHS: | Details |
| Port Type: | Simplex |
| Mode: | Singlemode |
| Color: | Blue |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Packaging: | Bulk |
| Body Material: | Plastic |
| Brand: | Broadcom / Avago |
| Product Type: | Fiber Optic Connectors |
| Factory Pack Quantity: | 500 |
| Subcategory: | Fiber Optic |
| Unit Weight: | 0.022399 oz |
Applications
- Fast Ethernet
- Industrial Data Links for Factory Automation & Plant Control
- Intra-System Links, Board-to-Board, Rack-to-Rack
- Medical Instruments
- High Voltage Isolation
