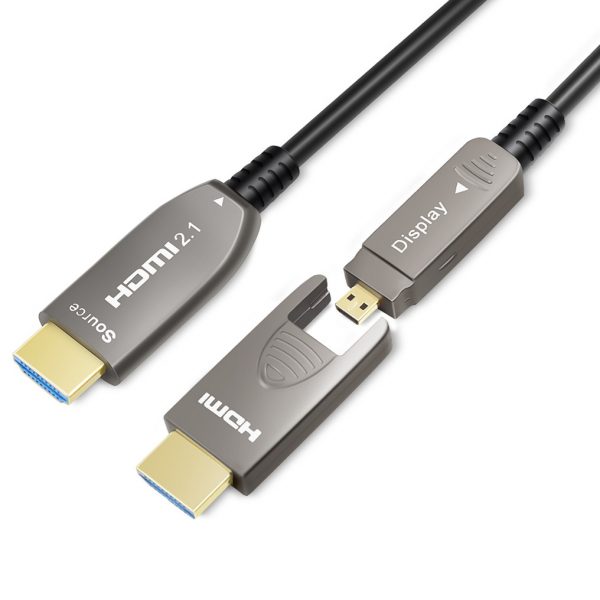

Detachable Fiber Optic HDMI Cable-8K HDMI 2.1
Highlight Features:
- Unparalleled 8K 60Hz definition;
- Maximum 240Hz ideal for immersive entertainment;
- Optical / Electrical solution for lossless transmission;
- 48Gbps bandwidth;
- Easy-grip zinc-alloy housing and gold-plated connectors
The BHDC-21AD-XX serires Detachable Fiber Optic HDMI Cable-8K HDMI 2.1 are also called Fiber Optic HDMI Cable, HDMI Fiber Optic Cable, HDMI Fiber Cable,HDMI Active Optical Cable, Active Optical HDMI Cable.
They are made of high quality hybrid optical fiber cable(4 Fiber & 7 Cooper) with up to 48Gbps ultra high speed and 8K@60Hz resolutions signals without signal loss. By utilizing BONES’ unique AOC+™ technology, the Detachable Fiber Optic HDMI Cable-8K HDMI 2.1 enable conversion between input signals and optical signals for optimum high bandwidth data transmissions and 100 meters maximum transmission length (70m for supporting eARC).
This EMI-resistant Detachable Fiber Optic HDMI Cable-8K HDMI 2.1 offers the ideal values for every frame up to 8K unparalleled visual, and up to 240Hz refresh rate, as specified in HDMI 2.1, to let you enjoy the immersive entertainment and gaming experience. The optical solution ensures the mass signal will be transmitted in a lossless way even long distance.
Highlight Features:
- Support 8K@60Hz and 4K@120Hz, as specified in HDMI 2.1;
- 48Gbps mass-capacity bandwidth. Backward compatible;
- Designed for transmitting up to 8K@60Hz unparalleled visual, as well as VR and 3D display signal in a lossless way even a long distance;
- Refresh rate at 120Hz while under 4K, ultra-fast motion UHD images to be crisp and razor-sharp, and higher refresh rate when using lower resolution;
- With Dynamic HDR, contrast, depth, brightness and wider color gamut are shown at ideal values on a frame-by-frame basis;
- With eARC, connectivity is enhanced and simplified for greater ease of use of multiple components discovery and audio optimization;
- Support the high-bitrate audio formats up to192kHz, 24-bit, and uncompressed 5.1 and 7.1, Dolby specific lossless audio formats, and 32-channel uncompressed audio;
- With VRR, gameplay will be more fluid and better detailed with nearly zero lag, judder and frame tearing;
- Support EDID incl. self-detecting function, ALLM, QMS and QFT;
- Made with strong zinc-alloy housing and corrosion-resistant gold-plated connector;
- Easy-grip zinc-alloy housing and gold-plated connectors;
- High resistance against surrounding electromagnetic interference. Safe for everyone via the nil-radiation environment;
- Up to 70m maximum length(30m max. for eARC );
- Custom length,logo,packaging available;
Applications:
- Digital signage
- LED signs & monitors for stadiums,hospitals,shipping malls
- Medical imaging equipment
- Airport boarding video information system
- Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
- Radio and TV station
- Video conference equipment
- Security monitoring system
Technical Specifications:
| Item | Description | |
| Units | Transmitter (Source) | Receiver ( Display) |
| HDCP & DDC | HDCP 2.2 Fully Support bi- directional EDID and HDCP communication | |
| Video Bandwidth | 12 Gbps/x 4Channel | |
| Supported Resolution & Distance | 480p, 720p, 1080i and 1080p deep color, 4Kp50/60/100/120 and 8Kp50/60 up to 30m | |
| O/E Converter | 4 channel 850 nm array | 4 CH GaAs PD array |
| Connector Type | HDMI type A to type A (Detachable) | |
| Cable Type | Hybrid type with OM3 fiber and copper wire | |
| Cable Length | 15m/20m/30m (with +/- 20cm tolerance) Custom length available, up to 70 meters maximum. | |
| Cable Outer Diameter | 4.5mm | |
| Jacket Outer Material | PVC/TPU(Custom) | |
| Cable W eight TBD | Cable Weight TBD | |
| Cable Color TBD | Cable Color TBD | |
| Differential Input | 100 ohm (typ) | |
| Power Consumption | 250mW (max) | |
| Power Supply | Non external power required | |
Extreme Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.5 | 5.5 | V |
| Working Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Storage Humility | Hs | 10 | 80 | %RH |
Recommended Working Environment:
| Item | Symbol | Minimum Value | Maximum Value | Unit |
| Voltage | VCC | 4.75 | 5.25 | V |
| Working Temperature | Top | 0 | 50 | °C |
Product Datasheet Download
Feel free to contact us for details
